技術參數

1.采?光柵傳感器,絕對原點測量系統,測量精度高 With grating sensor and absolute origin measuring system, high precision.
2.內置可充電3.7V鋰電池,充電接口為Type-C接口 Built in rechargeable 3.7V lithium battery, the charging interface is type C.

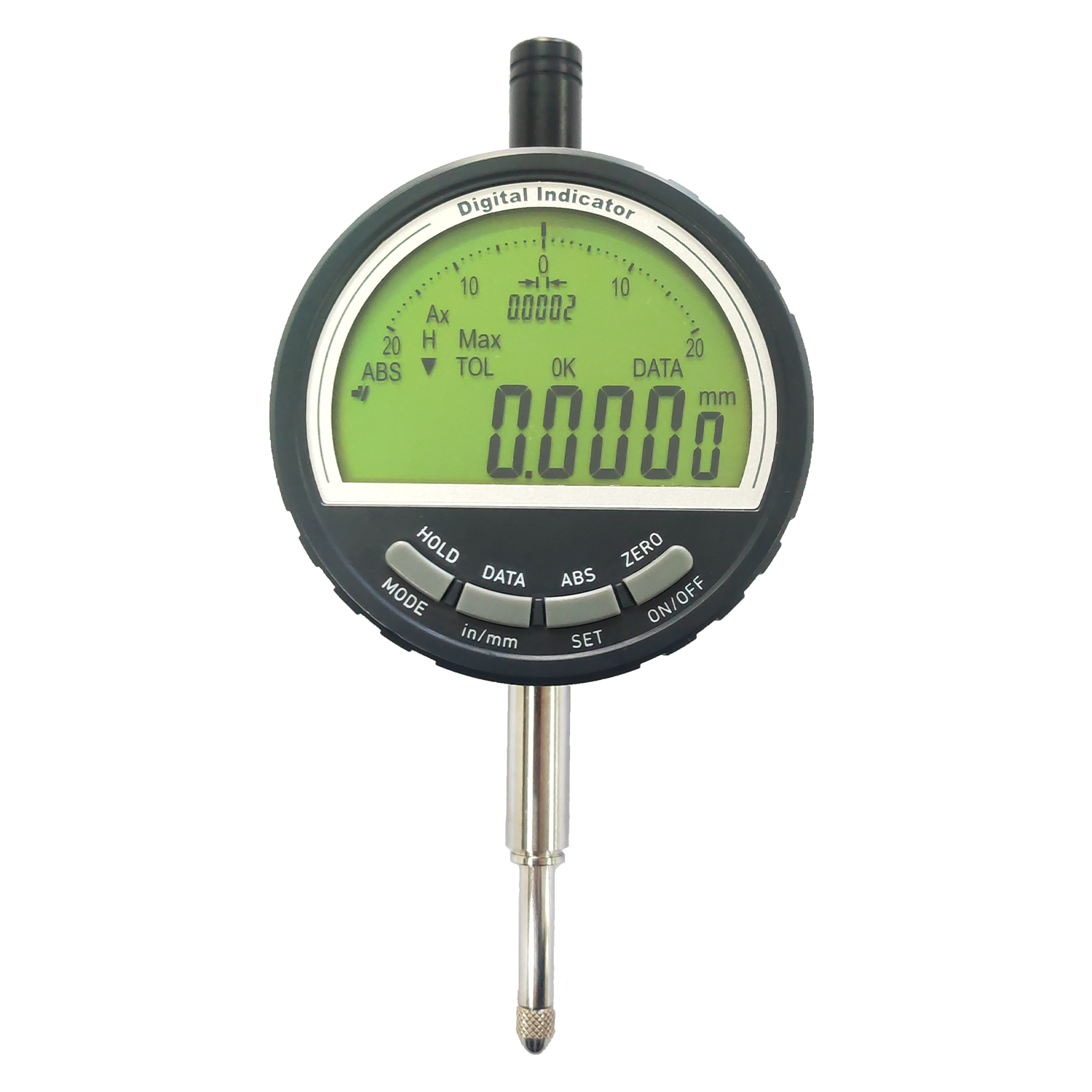

3.超?尺?超?字符液晶顯示屏,可順時針旋轉270度,模擬指針顯示 Extra large LCD, extra large font. It can rotate clockwise 270 degrees. With simulate pointer display.
4.數據輸出為Type-C接口,數據可選擇單點采集或高速連續采集 The data output interface is type C. Data can be collected at a single point or continuously at high speed.
5.有絕對測量模式、相對測量模式、公差設置判定模式、極值測量模式,Ax計算功能模式 There are absolute measurement mode, relative measurement mode, tolerance setting judgment mode, and Ax calculation function mode.
6.有自動關機時間設置,測量?向轉換。測量數據鎖定功能 It can set automatic shutdown time. Change measurement direction. Hold measurement data.
